| Project | |
| Date of Run: 9/13/2005 | |
| Location: BEMIDJI MN. | Start ID: 210 |
| Total Distance: 304.4 | End ID: 208 |
| Run Number: BEMIDJI RUN 112 | Flow Direction: SOUTH |
|
Footage |
Fault Observation |
Time |
Picture |
|
|---|---|---|---|---|

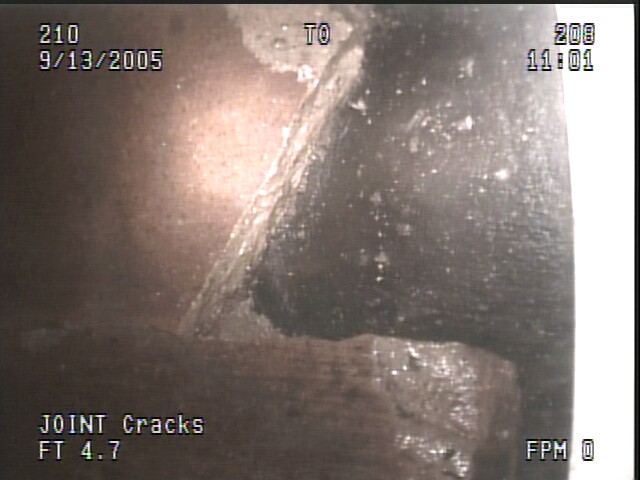

| 4.7 |
JOINT Cracks
Severity: Light Value 2nd Dimension: 0 Value Percent: 0 Joint Maint Weight: 0 Struct Weight: 0 |
50 |
|
|

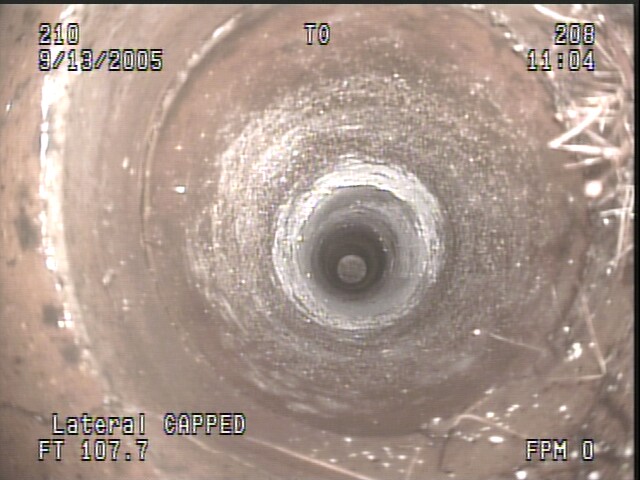

| 107.7 |
Lateral CAPPED
Position: 12 Severity: None Value 2nd Dimension: 0 Value Percent: 0 Joint Maint Weight: 0 Struct Weight: 0 |
03:27 |
|
|

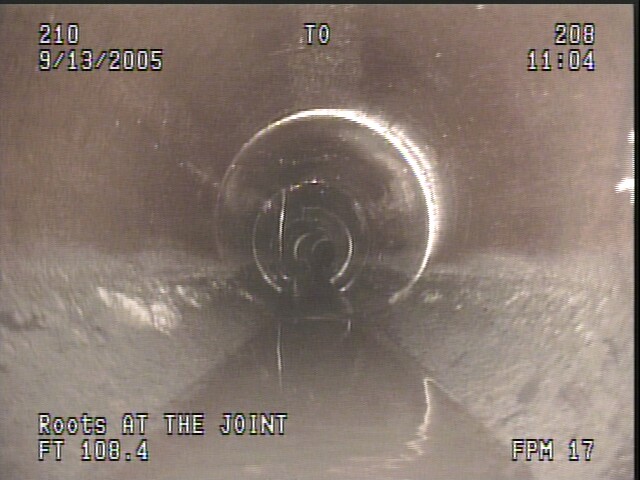

| 108.4 |
Roots AT THE JOINT
Severity: Light Value 2nd Dimension: 0 Value Percent: 0 Joint Maint Weight: 0 Struct Weight: 0 |
03:45 |
|
|

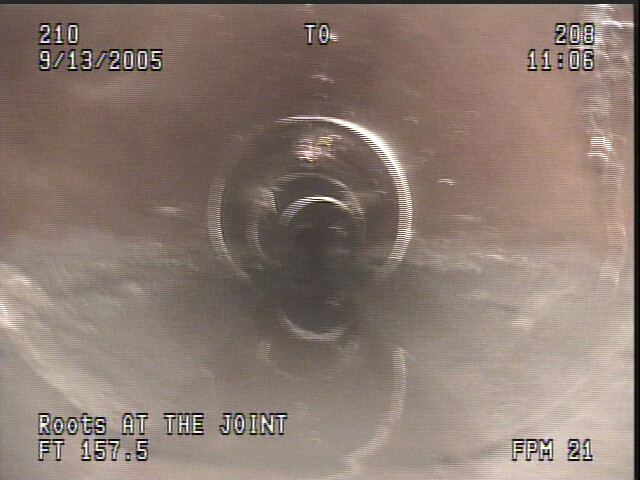

| 157.5 |
Roots AT THE JOINT
Severity: Light Value 2nd Dimension: 0 Value Percent: 0 Joint Maint Weight: 0 Struct Weight: 0 |
05:56 |
|
|

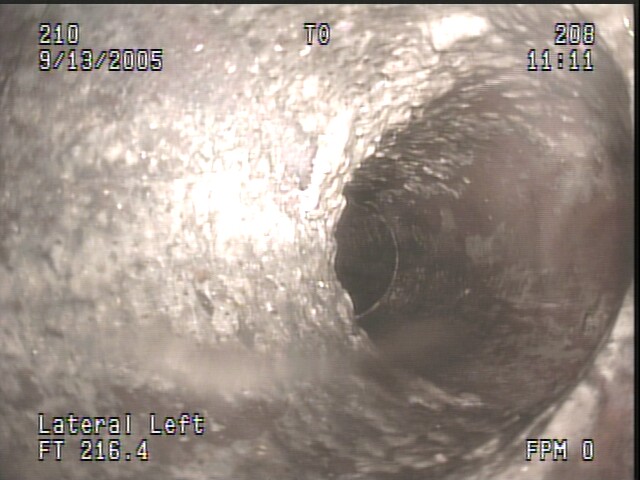

| 216.4 |
Lateral Left
Position: 12 Severity: None Value 2nd Dimension: 0 Value Percent: 0 Joint Maint Weight: 0 Struct Weight: 0 |
10:27 |
|
|

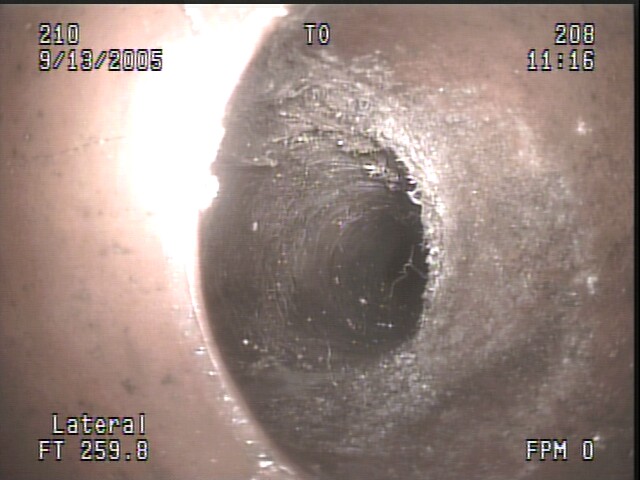

| 259.8 |
Lateral
Position: 12 Severity: None Value 2nd Dimension: 0 Value Percent: 0 Joint Maint Weight: 0 Struct Weight: 0 |
15:19 |
|
|

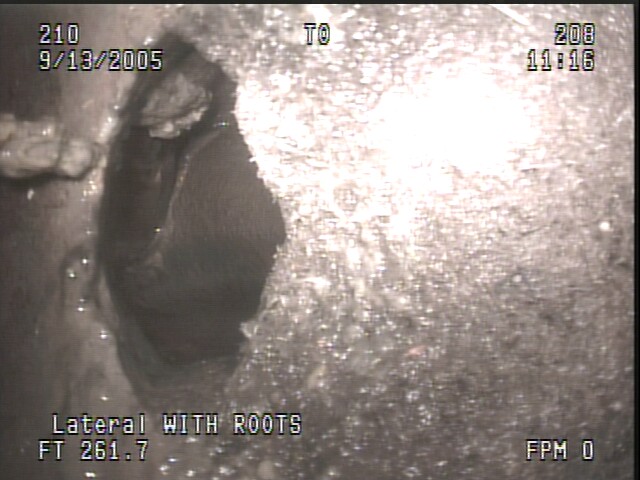

| 261.7 |
Lateral WITH ROOTS
Position: 1 Severity: Average Value 2nd Dimension: 0 Value Percent: 0 Joint Maint Weight: 0 Struct Weight: 0 |
15:48 |
|
|

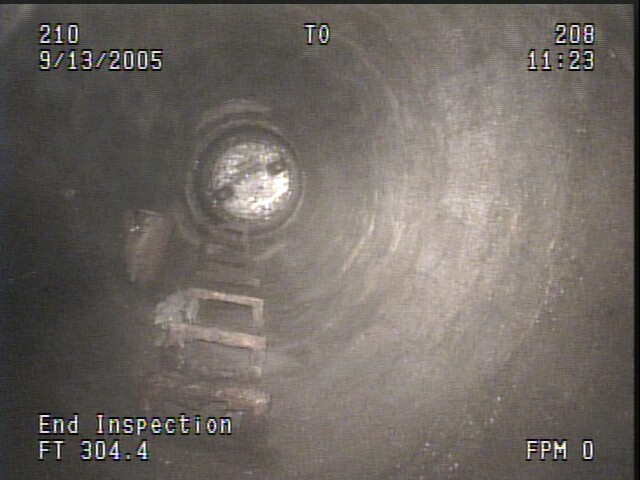

| 304.4 |
End Inspection
Severity: None Value 2nd Dimension: 0 Value Percent: 0 Joint Maint Weight: 0 Struct Weight: 0 |
22:04 |
|
|
